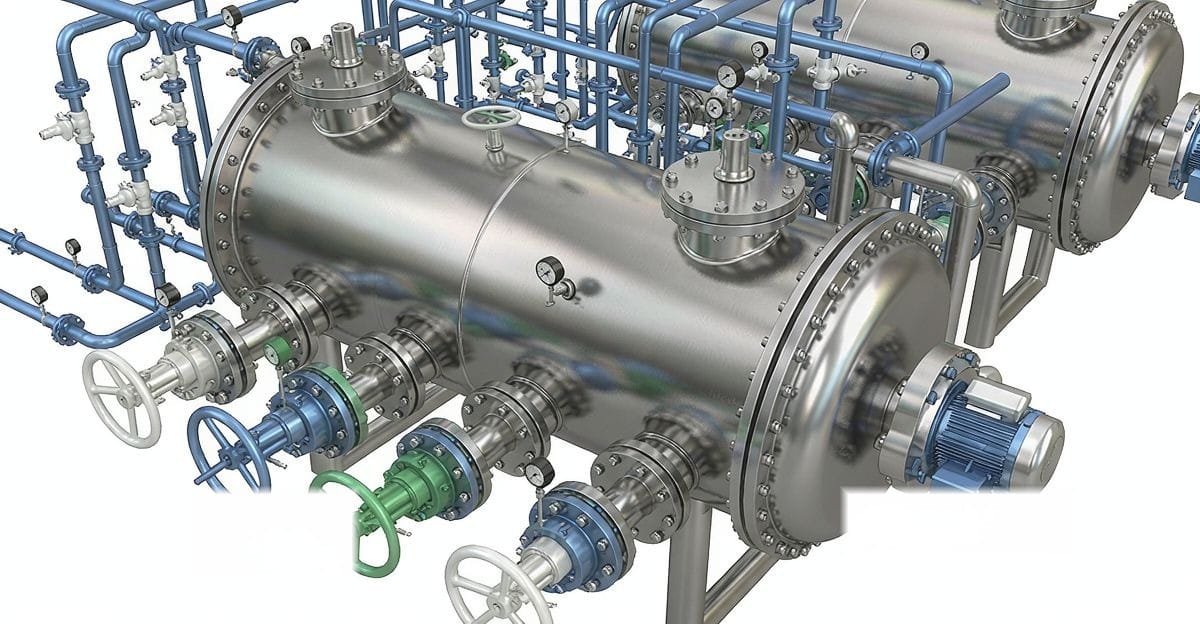

Zero Liquid Discharge Plants: Valve Selection for Concentrated Brine

Zero liquid discharge (ZLD) plants exist to leave nothing behind: every kilogram of dissolved salt that enters the facility must leave as a solid product, and no liquid effluent leaves the site. The process chain — pretreatment, membrane concentration, thermal evaporation, and crystallization — progressively concentrates the brine until the final stages handle a saturated, hot, near-boiling solution of chlorides and scale-forming compounds. For valves, this is a convergence of the worst conditions in the water and chemical industries: aggressive chemistry, fouling service, high differential pressures, and thermal flashing, all inside a plant that usually runs continuously with little tolerance for outages. Valve selection in ZLD is a materials and design exercise first, and a flow-sizing exercise only afterward.

Where the Difficulty Lives in the Process

Each process stage taxes valves differently, and a single material philosophy for the whole plant is usually wrong.

Pretreatment — clarification, softening, filtration — handles water with moderate salinity but suspended solids and treatment chemicals. Conventional materials survive here if abrasion from solids is considered.

Membrane concentration — reverse osmosis and sometimes electrodialysis — raises the brine toward saturation. High-pressure pumps push the concentrate, and the reject side of the membranes carries water at elevated chloride content and significant pressure. Valves on these lines see both corrosion and pressure duty.

Evaporation and crystallization — mechanical vapor recompression evaporators, forced-circulation crystallizers, centrifuges, and dryers — is where the brine becomes saturated slurry. Here valves see boiling concentrated brine with suspended crystals, flashing across pressure letdowns, and the constant threat of crystal build-up in every cavity and seat.

The Media: High Salt, High Chloride, High Temperature, Scaling

Four properties of concentrated brine govern valve engineering:

• Chloride activity. As salinity rises toward saturation, chloride attack accelerates. Pitting and crevice corrosion that are negligible in seawater become active in a hot brine at twice seawater chloride concentration.
• Temperature. Evaporator circuits run near the boiling point of the concentrated solution, often above 100 °C, which multiplies corrosion rates and pushes passive alloys toward their stability limits.
• Scaling tendency. Calcium sulfate, carbonate, and silica reach supersaturation in the final stages. Scale nucleates on any surface where flow slows or local evaporation concentrates the liquid — which is precisely what a valve body is.
• Crystal slurry. In the crystallizer loop, the medium is a solid-liquid mixture. Crystals pack into dead volumes, abrade seats, and bridge narrow passages.

Material Escalation Path

Material selection in ZLD follows an escalation logic tied to chloride content and temperature:

• Austenitic stainless steel (304L/316L) — adequate for pretreated water and low-concentration streams; already marginal in the membrane concentrate stage, where crevices under gaskets become initiation sites.
• Duplex and super duplex stainless steels — the workhorses of the concentrate and brine stages. Super duplex grades with high chromium, molybdenum, and nitrogen offer pitting resistance well beyond seawater requirements. Castability and strength at pressure make them the default for bodies in the evaporation circuit.
• Titanium grades — nearly immune to hot chloride pitting and crevice attack, selected for the most severe brine positions and where super duplex margins are judged insufficient. Titanium's lower strength and joining considerations shape where it is practical.
• Nickel alloys such as Alloy 625 and C-family grades — reserved for the harshest wet spots: crystallizer internals, flashing zones, and positions where both chlorides and acidic excursions coincide. Cost confines them to positions where cheaper alloys have demonstrated short life.

Two cautions apply. First, crevice corrosion governs more valve failures than general pitting: the gaps under seat rings, in threaded connections, and between body and gasket are where concentrated brine does its worst work, so design details matter as much as alloy certificates. Second, chloride stress corrosion cracking disqualifies austenitic stainless steel above moderate temperatures in the hot stages, even where uniform corrosion rates look acceptable.

Crystal Blockage and Flushing Design

Saturated brine begins crystallizing the moment it is disturbed — a pressure letdown, a temperature drop, or a stagnant pocket triggers nucleation. Valve design must assume crystals will form inside the body and plan for them:

• Full-bore, pocket-free flow paths so crystals have nothing to settle in. Bodies with smooth internal contours and no cavities above the flow axis drain and flush cleanly.
• Flush or purge connections at the body cavity and seat area, allowing the plant to push hot clean water or filtrate through a valve before it is operated or isolated. Many crystallizer valves are flushed on a schedule, not on demand.
• Quench arrangements at letdown valves, where high-pressure concentrate is flashed; adding a flush stream at the seat keeps the throttling area clear of growing crystals.
• Seat and closure design tolerant of solids — metal-sealed, shear-action closures such as gate or plug styles, or ball valves with cavity relief, depending on the position.
• Heat retention: bodies and flanges insulated so no local cooling below saturation temperature occurs, mirroring the discipline of molten salt and heavy oil service.

High Differential Pressure and Flashing

The pressure boundary between the membrane stage and atmospheric discharge creates severe conditions at letdown valves. Concentrate at high pressure flashes to vapor across the valve, and the flashing mixture — liquid, vapor, and growing crystals — is both erosive and noisy. Selection responses include:

• Multi-stage or multi-orifice trim in control valves that splits the pressure drop, keeping flow velocity below erosive levels and limiting crystal nucleation per stage.
• Angled body styles and hardened downstream internals where flashing cannot be avoided.
• Locate flashing valves so the downstream line has short runs to the evaporator or crystallizer vessel, minimizing erosion of attached piping.
• Position control valves for access, because flashing service is the highest-wear position in the plant and rebuild intervals are the shortest.

Lined Valves in ZLD

Where corrosion risk is extreme but pressure and temperature are moderate, lined valves earn their place. PFA and FEP lined butterfly valves, plug valves, and diaphragm valves are common on acid dosing, neutralization, and some crystallizer auxiliary lines. The limits are real: liner permeation and blistering under hot, high-chloride service, temperature ceilings well below evaporator conditions, and the need for careful gasket and flange practice to avoid liner damage. Lined valves suit the chemical treatment periphery of the plant; they rarely suit the brine main itself, where pressure, temperature, and solids disqualify them.

Maintenance and Life Management

ZLD economics depend on the thermal section staying online, so maintenance is planned around short, frequent interventions:

• Track wall thickness and seat condition on brine valves by periodic inspection; corrosion in hot brine is fast enough that assumptions from other industries do not transfer.
• Flush every valve in the crystallizer circuit before isolation, every time. An unflushed valve trapped with saturated brine becomes a solid block.
• Keep rebuild kits — seats, seals, packing, bolting — staged for the highest-duty positions, and treat those valves as consumables with defined overhaul intervals.
• Monitor control valves in flashing service for noise and vibration change, which are early wear indicators.
• Inspect gasketed joints for crevice attack; re-torque and re-gasket with compatible materials during every outage window.

Selection Checklist

Before finalizing valves for a ZLD facility, confirm for each position:

• Chloride concentration, temperature, and pressure at design and upset conditions.
• Material grade justified against pitting and crevice resistance, not just general corrosion rates.
• Flow path design: full bore, pocket-free, flushable, with defined flush media and schedule.
• Pressure letdown handled with suitable multi-stage trim where flashing occurs.
• Lined valves confined to positions within liner temperature and pressure limits.
• Maintainability: access, rebuild kits, and overhaul intervals defined for the highest-duty positions.

Choosing with Manufacturer Support

ZLD punishes generic material choices faster than almost any other water application. An experienced manufacturer that produces the full valve range in-house — ball valves, control valves, gate valves, globe valves, check valves, strainers, knife gate valves, plug valves and butterfly valves — can walk the process with the plant engineer, propose alloy and lining selections for each service condition, and document flushability and trim options per position. Send the Valve Schedule or the key parameters for each position to the manufacturer's applications team for a per-line proposal.
