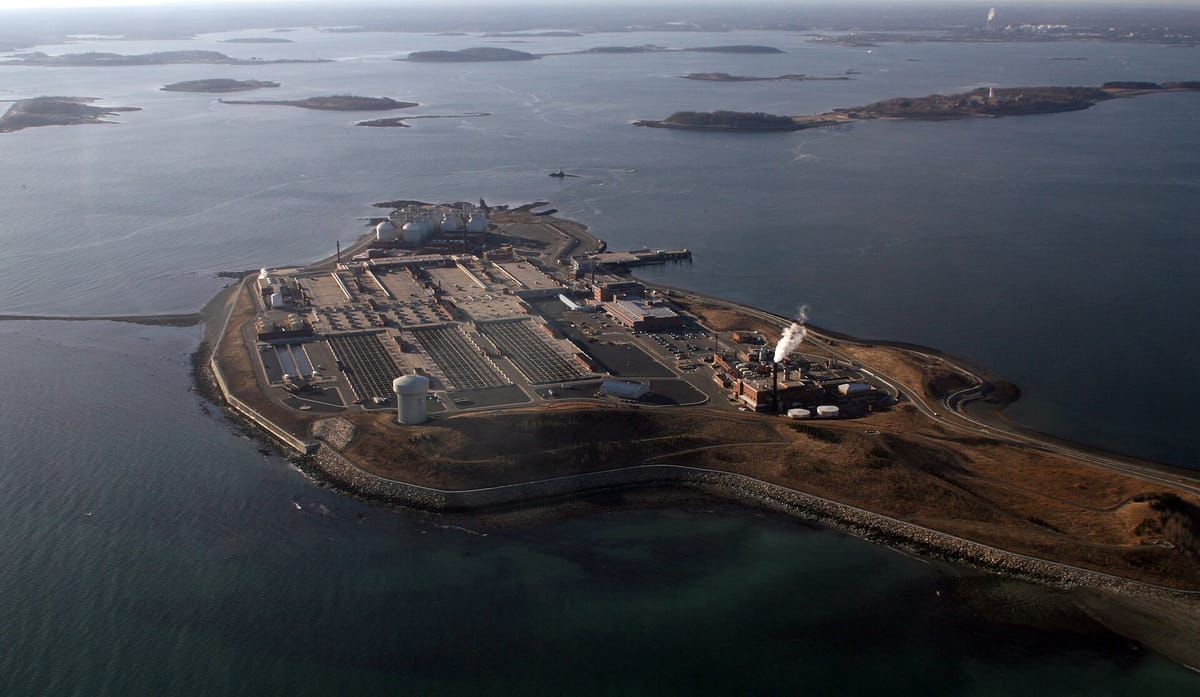

Inside a Water Treatment Works: Where Valve Problems Show Up First

Walk into a water treatment works and ask the maintenance lead where the valve problems are, and you will not be pointed at the high-pressure end of the plant. You will be pointed at a small dosing valve that has been rebuilt so many times the tag is worn off, or a filter inlet that strokes every few hours and has never quite sealed the same way twice.

That is the counterintuitive thing about water and wastewater plants. The pressures are modest, the temperatures are ordinary, and the media are not exotic. And yet valve failure rates are often higher than in far harsher industries, because the defining load here is not pressure. It is repetition. A valve that cycles every few hours, every day, for years, wears out on a schedule that has nothing to do with how aggressive the fluid looks.

Dosing lines: small valves, disproportionate trouble

Chemical dosing is where a lot of grief lives, and it is almost always the small valves that cause it. Dosing lines carry concentrated chemicals — coagulants, acids, caustics, sometimes polymers — and the small valves in those lines see a brutal combination:

• Corrosion from the concentrated chemical itself, often at ambient temperature where the reaction is slow but relentless.
• Crystallization and scaling around stems and seats, especially with lime, caustic, and some coagulants.
• Low flow and small passages that plug or bind far more easily than a main-line valve ever would.
• Infrequent operation, which sounds kind — until the valve sticks closed from sitting in a crystallizing fluid.

The practical lesson is that dosing valves should be chosen for chemical compatibility and cleanability first, and for pressure rating almost not at all. Plants that pick a dosing valve by price and pressure class alone end up rebuilding the same positions continuously.

Filter and backwash valves: the duty-cycle killers

If there is one place where valve problems concentrate, it is around filters. Sand filters, media filters, and their backwash systems cycle constantly — opening and closing several times a day, often under flow, often in a sequence that has to hit its timing or the process suffers.

What goes wrong:

• Seats wear from sheer cycle count rather than any aggressive media.
• Actuators drift or lose their settings, so the sequence times slip and the filter performs worse.
• Valves that were sized for steady flow are asked to modulate, which shortens their life.
• Butterfly valves in backwash service are prone to seat damage when they are used to throttle.

These are not high-stress applications in the classic sense. They are high-cycle applications, and high-cycle duty punishes anything selected on pressure rating alone. A valve chosen for a quiet main line and dropped into a backwash header will disappoint, repeatedly.

Sludge lines: where solids do the damage

Sludge and slurry lines are the opposite case — low cycle count, but a medium that actively attacks valves every time they operate. The problems are physical rather than chemical:

• Abrasive solids erode seats, discs, and bodies, especially at the throttling point.
• Settling and caking around seats and stems, so the valve binds between operations.
• Large solids that jam a valve, especially knife gate and gate designs with tight clearances.
• Uneven flow and slugging that overloads whatever valve is unlucky enough to sit in the stream.

In sludge service, the valve that lasts is the one designed for solids — full-bore where possible, with as few obstructions and as little exposed seat geometry as the duty allows. A standard valve that happens to fit the piping is a maintenance item waiting to happen.

The aeration and chlorination zones

Secondary treatment and disinfection bring their own valve problems, both of which are easy to underestimate:

• Aeration air lines, where check valves fail because of moisture, fouling, and a tendency to chatter at low flow.
• Chlorination and dechlorination areas, where the chemicals and the environment attack valve trim and exterior hardware at the same time.
• Vapor and gas-containing lines where a small valve failure can trip an alarm or, worse, release something that should not be released.

These zones do not fail constantly, but when a valve fails there the consequence is disproportionate, which changes how much reliability you should be willing to pay for.

Outdoor installs and whether freeze damage is on your list

Many works have valves installed outdoors or in unheated structures, and the seasonal failure pattern is predictable:

• Trapped water in valve bodies and bonnets freezing and cracking them.
• Buried or partially buried valves freezing at the stem or in the seat area.
• Standing water in low-flow lines that freezes and then blocks operation.
• Insulation installed once and never revisited, hiding a freeze path.

Freeze damage is not an engineering mystery, it is a maintenance planning problem. The plants that handle it well either drain these lines, trace-heat them, or move the critical valves indoors — and they review the list every autumn instead of every spring.

The real headache is duty cycle, not pressure

Pull it together and the pattern is clear. In a water treatment works, the valves that fail first are the ones that cycle the most, not the ones that see the most pressure. That runs against the instinct that comes from process industries, where pressure and temperature usually predict trouble.

For a water plant, the selection logic should follow the actual load:

• Prefer valves whose wear parts are designed for the cycle count, not just the pressure class.
• Put the best valve on the highest-cycle position, even if it looks like a low-duty line on paper.
• Reduce cycle count where possible — sometimes a control change saves more valve life than any purchase.
• Treat small dosing valves as critical spares, because their failure stops treatment just as surely as a main-line failure.

Replacement cycles and the spares conversation

Most water plants eventually settle into a replacement rhythm, and the ones that manage it well tend to do a few things:

• Track failures by position, so the high-cycle positions get a planned replacement rather than an emergency one.
• Keep critical spares on the shelf — especially dosing valves, backwash valves, and any valve that stops the process when it fails.
• Standardize on a small number of valve families so spare parts and staff knowledge both stretch further.
• Review the replacement list against actual failures each year, rather than relying on the original design assumptions.

The plants that are always firefighting are usually the ones with no position-level history and no spares plan. The valves are failing on a schedule they could have predicted.

Choosing the right valve for a water plant is ultimately a position-by-position exercise, because the duty varies so wildly across the works. An experienced industrial valve maker that produces the full valve range in-house — ball valves, control valves, gate valves, globe valves, check valves, strainers, knife gate valves, plug valves and butterfly valves — can usually match a valve family to each position's real duty. Send the relevant line items or application details to the manufacturer's applications team and ask for a per-position proposal.
