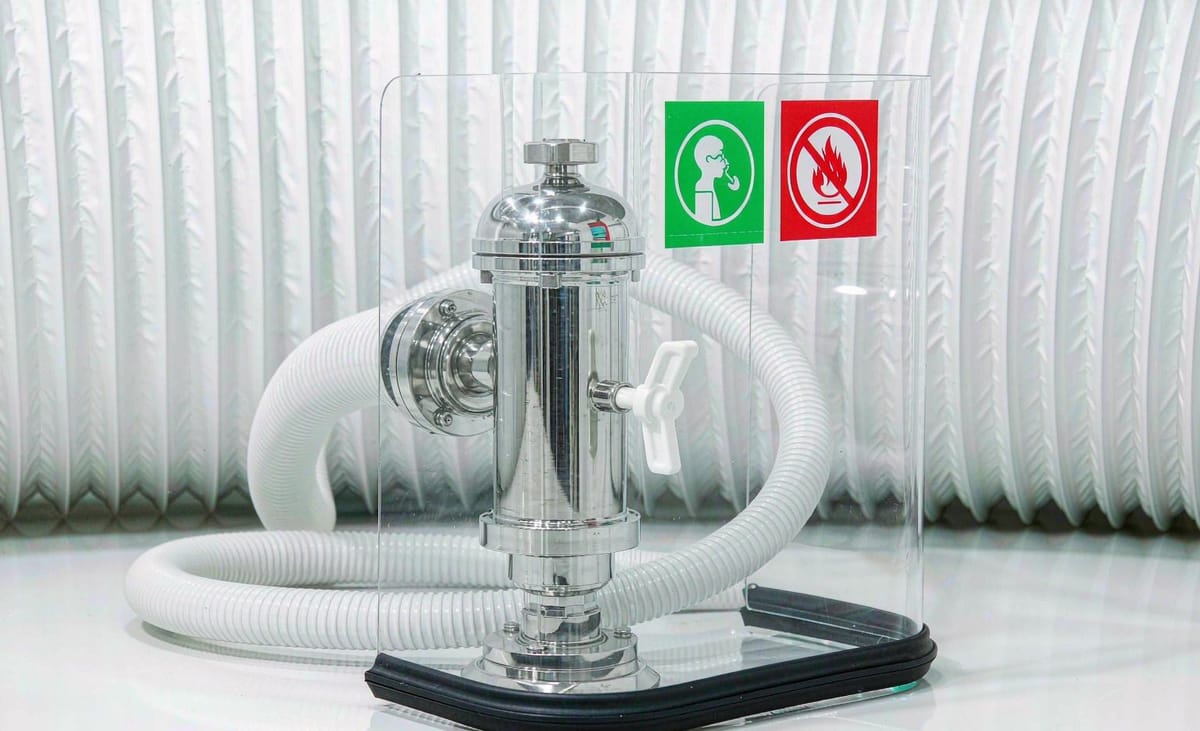

Oxygen Service Valves: Cleaning, Materials, and Ignition Safety

Oxygen itself does not burn. What it does is worse in a practical sense: it lowers the ignition energy and raises the heat of combustion of nearly everything around it. In an oxygen-enriched atmosphere, materials that are normally considered nonflammable — stainless steel particles, valve grease residues, even the valve's own internal trim — can ignite and burn violently. Industrial gas plants, air separation units, cylinder filling stations, medical gas systems, and metallurgical oxygen lines all share the same hard lesson: when oxygen fires start, they usually start inside or immediately downstream of a valve. The valve is where flow is throttled, where particles accelerate, and where dead-end compression happens in milliseconds. Specifying a valve for oxygen service is therefore not primarily a pressure-rating exercise. It is an exercise in removing fuel, removing ignition energy, and proving both through documented cleanliness.

The Ignition Triangle in Oxygen Systems

Fire requires an oxidizer, a fuel, and an ignition source. In oxygen service the oxidizer is abundant by definition, so engineering effort concentrates on the other two corners of the triangle.

The fuel side is broader than most buyers assume:

• Hydrocarbon oils and greases left over from ordinary manufacturing
• Cutting fluids, polishing compounds, and cleaning-solvent residues
• Particles of steel, weld slag, or grit that can themselves burn in oxygen
• Nonmetallic seats, seals, and lubricants that have not been qualified for oxygen compatibility
• Paints, thread compounds, and marking inks applied after cleaning

The ignition side includes mechanisms specific to valves:

• Adiabatic compression when a valve snaps open against a dead-ended, low-pressure segment filled with oxygen — the gas temperature spike can ignite oil film or elastomer in microseconds
• Particle impact, where a small contaminant carried at high velocity strikes a valve surface or seat and ignites either the particle or the surface
• Friction and galling during operation of stems, balls, and gates
• Static discharge and, less commonly, resonance-induced vibration heating

Every specification decision below traces back to this triangle.

Oxygen Cleaning: A Defined Process, Not a Mop-Down

"Cleaned for oxygen" is meaningless unless the cleaning method, acceptance limits, and verification method are all defined. Mature practice follows documents such as CGA G-4.1, ASTM G93, and ISO 15001, which share a common structure: disassemble, clean, verify, protect, document.

Cleaning is performed on fully disassembled valves, because crevices, stems, and soft seats hold residue. Acceptable cleaning agents are aqueous alkaline detergents or approved oxygen-compatible solvents; hydrocarbon-based solvents and chlorinated solvent residues are excluded. After cleaning, parts are rinsed, dried with oil-free air or nitrogen, and reassembled using only qualified lubricants, sparingly.

Verification is where weakly executed cleaning is exposed. Credible methods include:

• Visual inspection under white light for gross contamination, at adequate lux levels per the referenced standard
• Ultraviolet (UV) fluorescence inspection, which reveals hydrocarbon films that white light misses — many petroleum-derived residues fluoresce visibly under long-wave UV
• Gravimetric solvent extraction of a known surface area, weighing the residue against an acceptance limit in milligrams per square meter
• Water-break tests, where a properly cleaned metal surface holds a continuous unbroken water film; beading indicates hydrocarbon presence
• Particle counting or gravimetric particle limits for internal surfaces, since particulates are both fuel and ignition source

A cleaning certificate should state the method, the acceptance criteria, the actual results, and the personnel or procedure references. Cleaning without a signed, valve-serial-numbered record is, for procurement purposes, cleaning that did not happen.

Material Selection Against Particle Impact

Metals differ enormously in how easily they ignite from particle impact. Copper alloys and nickel-copper alloys resist ignition well and are traditional choices for high-pressure oxygen components. Austenitic stainless steels are widely used and generally acceptable within the pressure and velocity limits set by CGA guidance, but their resistance is finite, not absolute. Titanium and aluminum alloys have excellent corrosion resistance and low weight — and both are notoriously vulnerable to ignition in oxygen systems, which is why they are generally prohibited for wetted oxygen-wetted trim in high-pressure, high-velocity service despite their appeal on paper.

Nonmetallic parts deserve equal scrutiny. PTFE and PCTFE are common and broadly accepted; FKM and EPDM can be acceptable in specific grades and specific conditions, provided they pass oxygen-compatibility screening such as autoignition temperature and heat-of-combustion testing per ASTM G72-type methods. Unqualified elastomers with plasticizer content are a classic hidden fuel. The discipline is simple: every wetted material, metallic and nonmetallic, appears on an oxygen-compatibility list referenced to pressure and temperature.

Flow Velocity and Energy Control

Even with clean components, ignition energy must be managed. Velocity limits for oxygen depend on pressure, temperature, and the material of the component; CGA guidance publishes the accepted envelopes. In valve terms this translates into several practical requirements:

• Open slowly. Operational discipline and slow-opening actuators reduce dead-end adiabatic compression. Where fast actuation is unavoidable, upstream pressurization through a restriction — an orifice or a small bypass valve that equalizes pressure before the main valve opens — is standard practice.
• Avoid high-velocity impingement directly onto nonmetallic or impact-sensitive surfaces, especially downstream of pressure letdown.
• Provide upstream filtration and line flushing before commissioning, because commissioning debris is responsible for a large share of historical incidents.
• Locate significant pressure letdown so that any ignition event does not propagate into piping and vessels; some designers use deliberately sacrificial or robust sections downstream of letdown points.

Prohibited Materials and Lubricants

The prohibited list is unforgiving. Hydrocarbon oils and greases in any quantity, ordinary pipe dopes, oil-based paints, and unverified lubricants are excluded without exception. Lubrication, where needed for assembly and sealing, uses dedicated oxygen-compatible greases — typically fluorinated chemistries — applied in minimal quantity, with the application itself recorded. Residual lubricant quantity is limited precisely because even compatible lubricants add fuel load. Shops that handle oxygen-clean valves must segregate them from ordinary production, with dedicated benches and tools; cross-contamination in the workshop silently destroys the value of a validated cleaning process.

Packaging, Transport, and Field Integrity

A valve that leaves the shop oxygen-clean and arrives contaminated was a wasted purchase. Packaging requirements belong in the purchase order:

• Valves sealed in clean, individually bagged packages, with capped or plugged ends
• Double bagging for critical service, or nitrogen-purged sealed packaging where specified
• Cleaning certificates attached to the package, with the valve serial number
• Storage instructions that forbid opening the bag until the valve is installed, and forbid re-bagging by untrained personnel

On site, the risks reverse direction: contamination no longer comes from the shop but from the piping system. The valve must be kept bagged until pipe spools are flushed and dried, welds must not be made near open bagged valves, and any pipe joint compound used in the system must be oxygen-rated. Commissioning should include dry, oil-free air or nitrogen purge and, where practicable, a controlled first pressurization through restrictions rather than a full-bore snap opening.

Writing Cleanliness Clauses That Hold

Procurement language makes or breaks oxygen safety. A clause that says "valves to be oxygen cleaned" invites the cheapest interpretation. A defensible clause specifies the governing standard, the cleaning method family, the verification methods with acceptance limits (hydrocarbon residue in mg/m², particle limits by size class), the lubricant qualification requirement, packaging, and the documentation package — certificate, material list of wetted parts, and traceability. It also states the buyer's right to witness or audit verification. Buyers who have been through an oxygen fire investigation rarely complain about spending effort here; buyers who have not been through one are the target audience for this paragraph.

Closing Note

Oxygen service is unforgiving of shortcuts, but it is also one of the most well-understood special services in the industry: the standards exist, the test methods exist, and the failure mechanisms are documented. What varies between offers is whether the manufacturer actually executes the process and can prove it.
