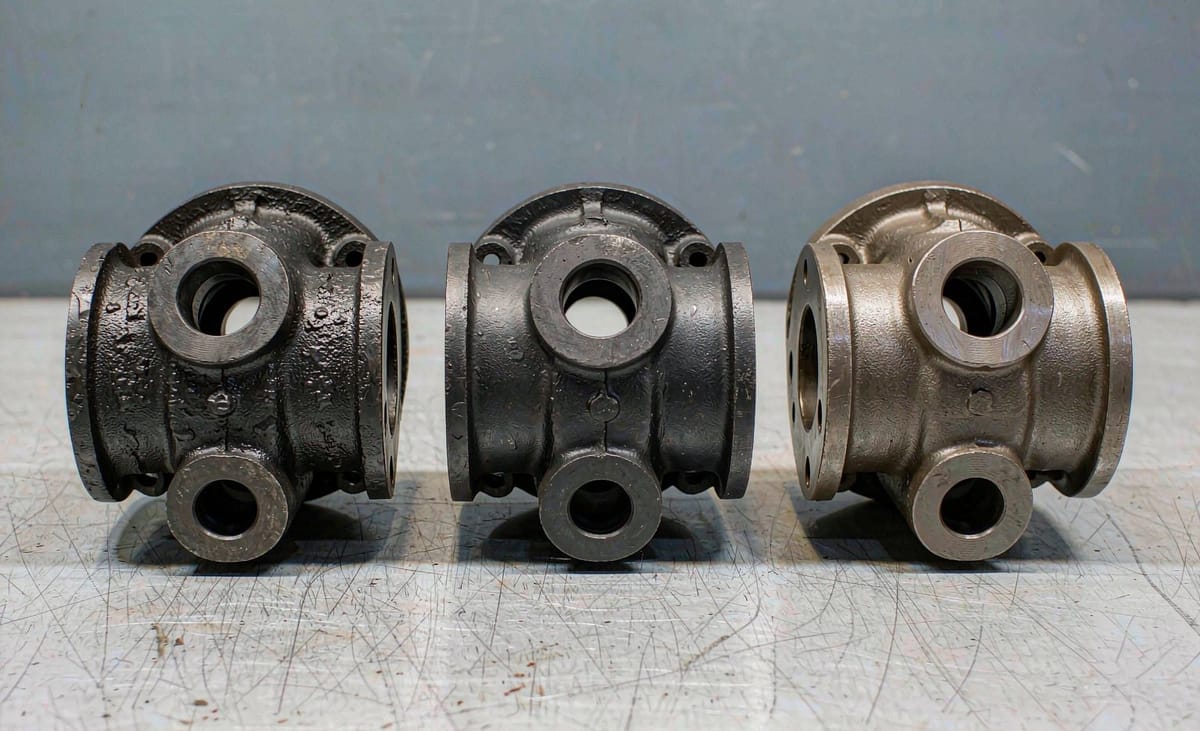

Cast Iron, Ductile Iron, and Cast Steel Valve Bodies Compared

For the enormous population of valves in waterworks, HVAC, and general process service, the body material question usually comes down to cast iron, ductile iron, or cast steel. The three look similar on a shelf, share many of the same dimensions, and are often sold side by side in the same catalogue. Yet their mechanical behavior differs fundamentally, and the difference is best understood as a spectrum of brittleness: gray iron is brittle, ductile iron is tough but not truly ductile in the steel sense, and cast steel deforms before it breaks. Match the material to the pressure, temperature, and shock environment of the line, and the choice becomes mechanical rather than guesswork.

Gray Cast Iron: The Traditional Economy Grade

Gray iron — the classic cast iron, flake graphite in a pearlitic or ferritic matrix — has served valve bodies since the earliest days of waterworks engineering. Its virtues are real: excellent castability, good machinability, natural corrosion resistance to many waters, damping capacity that quiets noise, and the lowest cost of the three.

Its weakness is the graphite flake itself. The flakes act as internal stress concentrators, so gray iron has virtually no measurable elongation and fails in a brittle, sudden manner. It has useful compressive strength but poor tensile strength and essentially no tolerance for impact, bending, or thermal shock. Pressure-temperature capability is correspondingly modest: gray iron bodies belong in low-pressure, ambient-to-moderate-temperature services, and standards governing iron valves cap both parameters well below where steel grades operate.

The classic misuse is easy to name: gray iron in a line subject to water hammer. A pump start-up surge, a fast-closing valve, or a check valve slam can impose a pressure spike well above the static rating, and gray iron — unable to yield — responds with a cracked body. The failure mode is dramatic: the body splits, the line dumps its contents, and the damage extends far beyond the valve. Anyone who has investigated one of these failures stops specifying gray iron in pumped systems permanently.

Ductile Iron: The Waterworks Workhorse

Ductile iron (spheroidal graphite iron) is chemically almost identical to gray iron, but a small magnesium treatment in the melt changes the graphite from flakes to nodules. That single metallurgical change transforms the mechanics: tensile strength roughly doubles, and — crucially — the material gains significant elongation. Ductile iron bends and dents before it breaks. It tolerates impact, ground movement, and pressure transients in a way gray iron physically cannot.

This is why ductile iron has largely displaced gray iron in modern water and wastewater service. Resilient-seated gate valves, butterfly valves, check valves, and hydrant products for buried service are predominantly ductile iron bodies, usually with a fusion-bonded epoxy coating inside and out to protect against soil and water corrosion — an essential part of the system, since uncoated iron corrodes progressively in aggressive soils and waters.

The boundaries to respect:

• Temperature. Ductile iron is not a high-temperature material; ferritic grades lose toughness and can undergo growth and embrittlement at elevated temperature, and cryogenic service is out of the question. Ambient to moderately elevated temperature only.
• Pressure. It covers the waterworks pressure classes comfortably and more, but it does not reach the pressure-temperature territory of steel.
• Thermal shock and fire exposure remain hazards in a way they are not for steel.

Within those boundaries, ductile iron offers the best value in the entire valve market: near-steel toughness at a price much closer to iron.

Cast Steel (WCB): The Process Grade

Cast steel for valve bodies — most commonly the carbon steel grade designated WCB in the American system, with low-alloy grades above it for higher temperature — is a different animal entirely. As a wrought-class steel in cast form, it combines high tensile strength, real elongation (engineering ductility), and a wide, code-recognized pressure-temperature envelope that runs from cryogenic-adjacent services (with appropriate grades) up through high-temperature steam territory where low-alloy steels take over.

Cast steel is the correct body material wherever any of the following appear:

• Pressure above the iron classes — process headers, boiler feed, high-pressure utilities.
• Temperature beyond ambient — steam, hot oil, thermal systems.
• Thermal cycling or shock — steel tolerates what irons cannot.
• Flammable or hazardous media, where the code, the insurer, or the operator's own standards exclude cast iron outright, precisely because of its brittleness.

WCB carries a modest corrosion allowance philosophy: it rusts, but it rusts slowly and predictably, and in process service it is usually either painted, coated, or in a controlled environment. For corrosive media, stainless grades within the cast steel family are the next step rather than exotic solutions.

Cost runs: gray iron lowest, ductile iron moderately higher, WCB steel meaningfully higher again — driven by material cost, stricter melting and NDT practice for steel castings, and heavier machining. At small sizes the absolute differences are modest; across a large waterworks project, the iron-to-steel spread is a major line item, which is exactly why overspecifying steel in ambient water service is a wasted expense and underspecifying iron in process service is a latent failure.

Impact and Water Hammer Tolerance

The shock-resistance ranking is unambiguous: steel best, ductile iron adequate for water-system transients, gray iron unacceptable. This single ranking drives more material decisions than any strength number does. Surge analysis belongs in the design of any pumped or long transmission line, and the valve body material should be selected against the transient pressures the analysis predicts, not the steady-state rating alone. Where surges cannot be eliminated, ductile iron with adequate class margin — or steel — is the honest answer.

Selection Logic in Brief

• Clean water, ambient temperature, low pressure, gravity or low-energy service: gray iron remains acceptable and economical — but ductile iron is the safer default for a small premium.
• Buried waterworks, wastewater, pumped water systems: ductile iron with epoxy coating, by habit and by specification.
• Steam, hot oil, high pressure, hazardous media, thermal cycling: cast steel (WCB or appropriate grade), without exception for iron.
• Any line with known water hammer: eliminate iron; verify ductile iron margin or move to steel.
