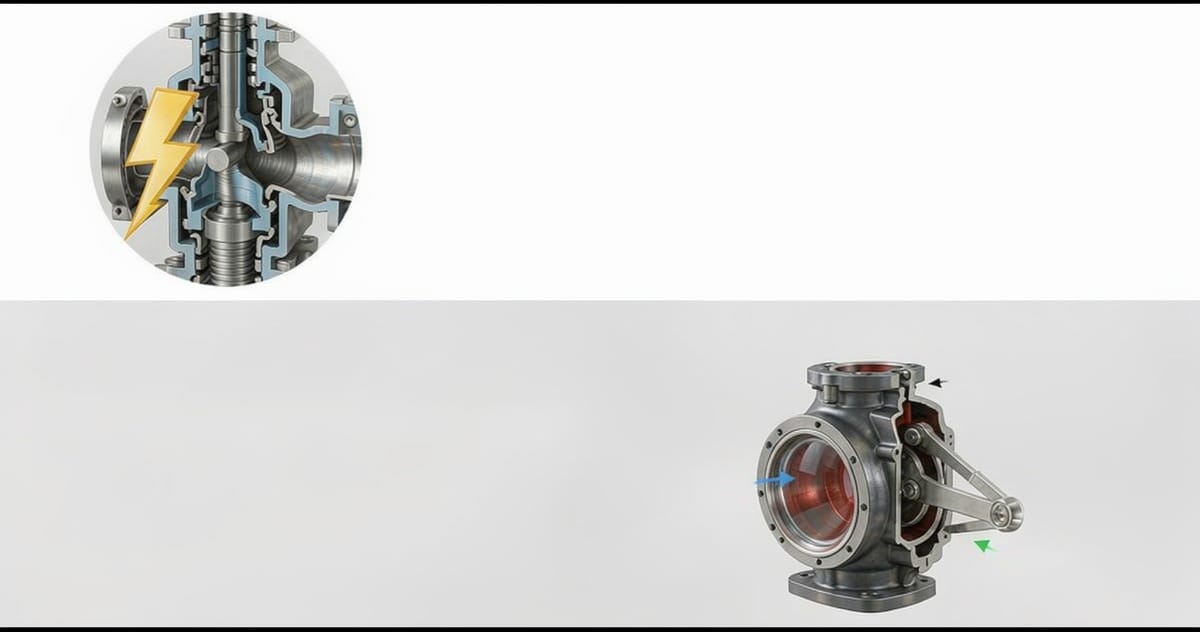

Check Valve Failure Modes: Why They Fail and How to Prevent It

Check valves are installed to be boring. They sit in the line for years without being commanded, actuated, or monitored, and the plant's attention goes to the control valves and the pumps. Then one fails, and it fails big: a pump wrecked by reverse flow, a line hammered apart by a slam event, a disc found in the pump suction. The uncomfortable truth is that most check valve failures trace back to decisions made at selection and installation, not to neglect. Understanding the standard failure modes, their root causes, and the early symptoms makes them almost entirely preventable.

Disc or Flap Separation

The most catastrophic mode. In swing and flap designs, the disc is held to the hinge arm by pins, nuts, or a captive arrangement. Corrosion, erosion, fatigue of the retaining hardware, or simply vibration over years can release the disc. Once free, it travels downstream — into a pump, a heat exchanger tube bundle, or the next valve — and the line it came from has suddenly lost its non-return function entirely.

Root causes cluster around a few themes:

• Service environment incompatible with the trim material — corrosive media attacking the hinge pin, or abrasive media wearing the retaining nut.
• Reverse-flow slamming, which hammers the disc against the hardware every closure and fatigues the attachment.
• Improper repair — hardware reused after galling, or fasteners torqued without thread lock in a vibrating service.

Symptoms, when there are any, are subtle: the check valve starts to rattle, or downstream pressure behavior changes. A sudden loss of forward-flow resistance after a long period of noisy operation is a red flag worth investigating immediately, because the disc may already be gone.

Hinge and Pin Wear

Swing checks live or die by their hinge. Media with solids, or flow that keeps the disc partially lifted in turbulence, grinds the hinge pin and bushing. The disc then swings sloppily, seats off-center, and starts leaking in reverse. The leak accelerates erosion of the seat, the disc begins chattering, and the valve marches toward either a seized-shut or a failed-open end state. The symptom is audible in many lines — a scraping or knocking sound synchronized with flow pulsation — and it is far cheaper to hear it early and re-trim the hinge than to return a pump impeller full of shards to the workshop.

Seat Erosion

A check valve that never fully closes leaks, and a leaking seat erodes. This is the classic spiral: leakage starts from a small cause — debris trapped on the seat, a wire-drawn surface from previous slamming, corrosion pitting — and the velocity through the leak path erodes it wider. In abrasive or high-velocity gas service the process is fast. Seat erosion rarely causes a plant upset on its own; what it causes is reverse flow where reverse flow was never expected, which can spin a standby pump backwards, drain a column, or back-contaminate a clean header. Periodic verification that standby check valves actually hold — by watching standby pump shaft rotation or monitoring line pressures — catches erosion long before it becomes an event.

Flutter and Chatter Fatigue

A check valve that is oversized for the flow never opens fully. It hangs in a partially open position, the disc floating and flapping in the unstable flow field, hammering lightly against its stops thousands of times per minute. This is the single most common mis-application in the industry: a swing check selected on line size rather than on the actual flow rate. The flow in that particular line, at that particular duty, is too low to hold the disc up, so the disc lives in flutter, the hinge and pins fatigue, the seat wears from repeated near-contact, and the valve fails years before its design life. The fix is selection discipline — a check valve should be sized so that normal flow holds it stable and fully open, even if that means the valve is smaller than the line.

Stuck Open

Debris, corrosion product, or a bent disc stop can wedge the valve open. Functionally the line now has no check valve at all. This mode is invisible from the control room, which is why some plants build periodic functional checks into their maintenance plans: briefly stopping or slowing a pump to verify the check valve actually closes, or using a diagnostic technique that measures the disc position acoustically. Critical services — those where reverse flow would damage equipment or endanger people — deserve this verification as a scheduled activity, not an assumption.

Slam and Water Hammer

When a pump stops, flow reverses as the column decelerates, and the check valve closes — ideally before reverse flow builds, ideally gently. A slow-closing check lets a reverse velocity develop first, then slams shut on a moving column, and the pressure transient that results can burst casings, shift pipework, and break instrument connections. The severity scales with line length, fluid velocity, and how much reverse flow develops before closure.

Mitigation is a selection decision, made with the system's transient behavior in mind:

• Faster-closing designs — spring-assisted, dual-plate, nozzle or axial-flow types — close before reverse velocity develops, and are the standard answer in systems with long lines or vertical lifts.
• Damped or counterweighted designs for specific services such as large water mains, where controlled deceleration is engineered rather than left to chance.
• System-level measures — surge analysis, controlled pump stop sequences, and in severe cases surge vessels — because sometimes the valve alone cannot solve what the system layout created.

Slam events announce themselves loudly, which is one of the few merciful features of this failure mode. A check valve that bangs on every pump stop is already damaging something; treat the noise as a work request, not an annoyance.

Consequences and Prioritization

Not every check valve failure matters equally. A useful triage ranks positions by the consequence of failure:

• Reverse flow into rotating equipment — highest priority; a pump spun backwards can be destroyed in seconds.
• Reverse flow that contaminates or drains a process — high priority for product and safety reasons.
• Loss of check function in a parallel-pump manifold — high priority, because the standby pump protection depends entirely on it.
• Low-energy, low-pressure utility lines — lower priority, though the repair cost of neglecting them accumulates quietly.

The point of the ranking is to direct functional testing and spare-part depth toward the valves whose failure hurts, rather than treating every check valve in the plant identically.

Prevention in Practice

Most of prevention happens before installation:

• Size on flow, not line size, so the disc operates fully open and stable in normal service.
• Match the closing speed to the system's transient behavior — fast-closing designs where the line can reverse quickly.
• Orient and install per the manufacturer's flow arrow and recommended straight run; a check valve mounted in a turbulent legacy tee behaves differently than the same valve in a developed flow profile.
• Specify trim materials against the actual media, including its solids content and corrosivity.
• Listen and look: flutter noise, seat leakage on standby, and unusual vibration are early symptoms that precede every mode described above.

Where a plant has a history of check valve problems in a particular service — recurring chatter, repeated slam complaints, a valve that has been rebuilt more than once — the service conditions, not the valve, deserve a fresh review.

Working Through the Failure History

Recurring check valve problems usually mean a mismatch between the original selection and the way the line actually operates. A manufacturer's applications team can work through the failure history with the operating data — flow rates, stop frequencies, transient severity — and recommend the closing style and trim that fit each position, rather than another like-for-like replacement that will fail the same way. An experienced manufacturer that produces the full valve range in-house — ball valves, control valves, gate valves, globe valves, check valves, strainers, knife gate valves, plug valves and butterfly valves — can support this review with selection options and test documentation. Send your Valve Schedule or the key parameters for each check valve position to the manufacturer's applications team for a per-line proposal.
