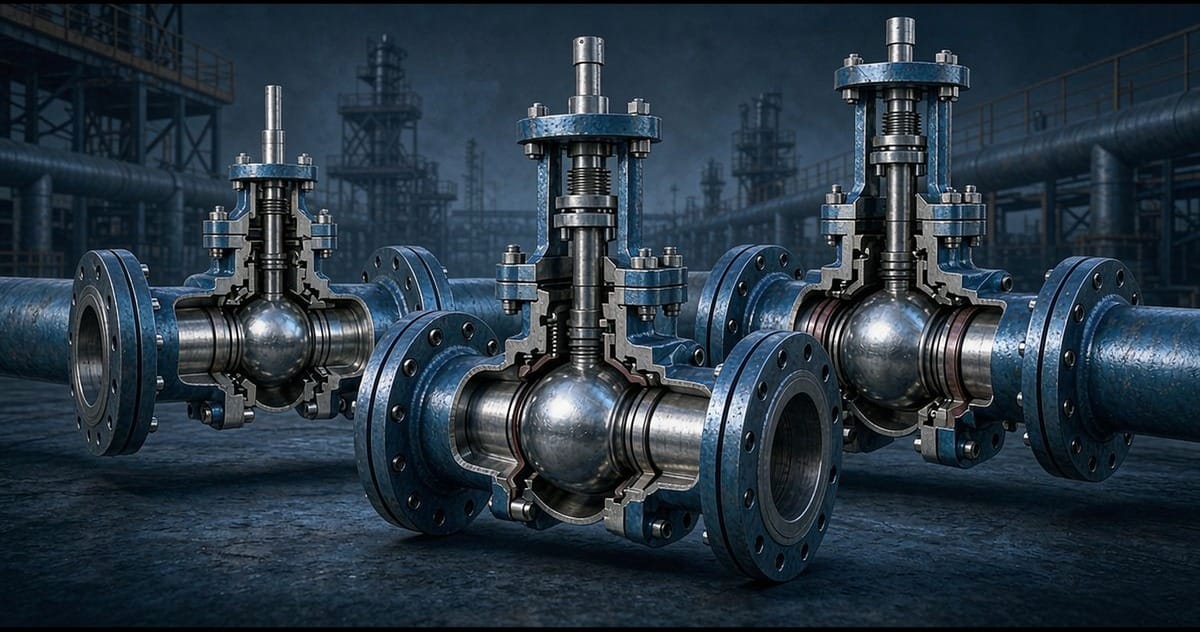

API 608 vs API 6D: Which Ball Valve Standard Applies

Ball valves are quoted against either API 608 or API 6D, and the difference is not paperwork — it changes the valve's length, its seat architecture, its test regime and its price. Choosing the wrong standard either strands the project with a valve that will not pass the pipeline operator's acceptance, or forces the plant to pay for pipeline-grade features it will never use. This article draws the boundary between the two and explains how to decide on a per-line basis.

The Core Distinction: Plant Valve vs Pipeline Valve

API 608 covers metal ball valves — floating and trunnion-mounted — with flanged, threaded and welding ends, intended for petroleum, petrochemical and general process service. It leans on the ASME B16.34 pressure-temperature framework and ASME B16.10 face-to-face lengths, and it assumes the valve lives inside a plant: on process lines, utility headers, and equipment tie-ins.

API 6D, by contrast, is the pipeline and piping-system valve standard. Its scope includes ball, check, gate and plug valves used on transmission and distribution pipelines and on the valves at pipeline stations and terminals. It is written around the priorities of pipeline operators: guaranteed isolation in both directions, cavity relief, through-bore capability for maintenance pigs, standardized end-to-end dimensions, and stringent documentation and traceability.

A useful shorthand: API 608 valves answer to the piping engineer; API 6D valves answer to the pipeline operator. The moment a valve sits on a transmission pipeline, a launcher or receiver, or a main line block position, API 6D almost always governs.

Where the Standards Diverge in Design

Double Block and Bleed, and Double Isolation and Bleed

API 6D formalizes the isolation functions that pipeline engineers specify:

• DBB (double block and bleed) — two independent seating surfaces sealing against pressure from a single source, with a means of venting the cavity between them.
• DIB (double isolation and bleed) — each seat isolates independently against pressure from either side, with cavity venting between.

A trunnion ball valve with self-relieving seats achieves DBB; with one seat designed as single-piston-effect (blocking pressure from one side) and the other as double-piston-effect, the valve achieves DIB. API 6D defines the marking and verification for these configurations. API 608 does not build its identity around these functions; a purchaser can still obtain DBB-capable valves under API 608, but the standard itself does not carry the same framework of definitions, seat designations and cavity venting provisions.

Cavity Relief

A trunnion ball valve with a closed bore traps fluid in the body cavity. If that fluid is a liquid or a volatile hydrocarbon, thermal expansion can overpressurize the cavity until the body or seat fails. API 6D addresses cavity overpressure directly — the standard's seat-leakage and cavity-relief provisions ensure that trapped pressure has a defined escape path, and purchasers specify seat type (self-relieving versus double piston effect) accordingly. API 608 leaves this largely to the manufacturer's design and the purchaser's specification.

Through-Bore and Pigging

Full-bore continuity is an API 6D expectation: pipeline valves must permit the passage of cleaning and inspection pigs. Bore tolerances and welding-end preparation are aligned with pipeline practice. API 608 valves can be full port, but the standard does not impose the pig-passing discipline that pipeline service demands.

End-to-End Dimensions

API 608 references ASME B16.10 face-to-face lengths. API 6D specifies its own end-to-end and face-to-face dimensions, which in several size and class combinations are longer than the B16.10 equivalents. This is a classic retrofit trap: a plant that replaces an API 608 valve with an API 6D unit (or vice versa) may find the new valve simply does not fit between the existing flanges.

Testing and Leakage

The test regimes differ in both method and acceptance philosophy:

• API 6D includes its own detailed test requirements — hydrostatic shell, seat testing at specified differentials, and low-pressure air seat tests where applicable — with test media, durations and acceptance defined in an appendix dedicated to testing. The seat leakage limits in API 6D are strict, reflecting the isolation-critical role of pipeline valves.
• API 608 references recognized inspection standards (such as API 598) for shell and seat leakage testing. Seat leakage grades are often quoted against ISO 5208 or equivalent; the purchaser selects the grade — a common choice being a tight grade for soft-seated valves and a metal-seat grade where applicable.
• Fire testing: API 608 permits soft-seated designs qualified to API 607 where the service requires it. Pipeline valves under API 6D in certain services will likewise be fire-tested to API 6FA or API 607 as the specification demands.

Pneumatic testing of the seat with air or inert gas at low pressure is routine for soft-seated valves under either standard, but the acceptance rates and the test pressure definitions differ — read the specific standard, not memory.

Actuators and Operation

Pipeline valves carry operational requirements that plant valves rarely face:

• Gear-operated or actuated pipeline valves are expected to interface with actuators through standardized mounting (ISO 5211 where applicable), with torque margins reflecting the pipeline operator's emergency shutdown logic.
• API 6D addresses features like seat sealant injection, cavity vent and drain connections, and in subsea applications ROV-accessible overrides — none of which are part of API 608's world.
• Fire-safe operation: an ESD ball valve on a gas pipeline must both survive a fire event (fire-tested design) and close against line pressure with documented seating margins. The specification, not the base standard alone, pulls these requirements together.

A Decision Logic for Specifiers

Sorting valves into the correct standard is straightforward if the questions are asked in order:

• Is this valve on a transmission or distribution pipeline, a launcher or receiver, or a station block position? → API 6D.
• Is it inside the plant battery limits on process or utility service? → API 608 for flanged, threaded and welding-end ball valves in general service.
• Does the piping specification demand DBB or DIB, cavity relief characterization, or pig pass-through even inside the plant? Some plant owners adopt API 6D for these positions regardless of location — follow the specification.
• Is the valve a manual plant valve with modest isolation demands? API 608 with a suitable seat-leakage grade and optional fire-safe qualification (API 607) is usually the economical answer.

The one mistake to avoid is letting the warehouse's standard offering decide. A shelf full of API 608 trunnion valves does not make them API 6D valves; the documentation, length, marking and test records will not satisfy a pipeline operator's audit.

Getting the Standard Right Before the Order

Standard selection is easiest when it is reviewed against the actual valve schedule, line by line, with someone who has seen both plant and pipeline projects. An experienced manufacturer that produces the full valve range in-house — ball valves, control valves, gate valves, globe valves, check valves, strainers, knife gate valves, plug valves and butterfly valves — can flag API 6D positions hidden inside plant piping classes, confirm end-to-end dimensions against existing flange spacing, and provide the test certificates and type-approval documents the operator will ask for. Send the valve schedule or the key parameters for each position to the manufacturer's applications team for a per-line proposal.
