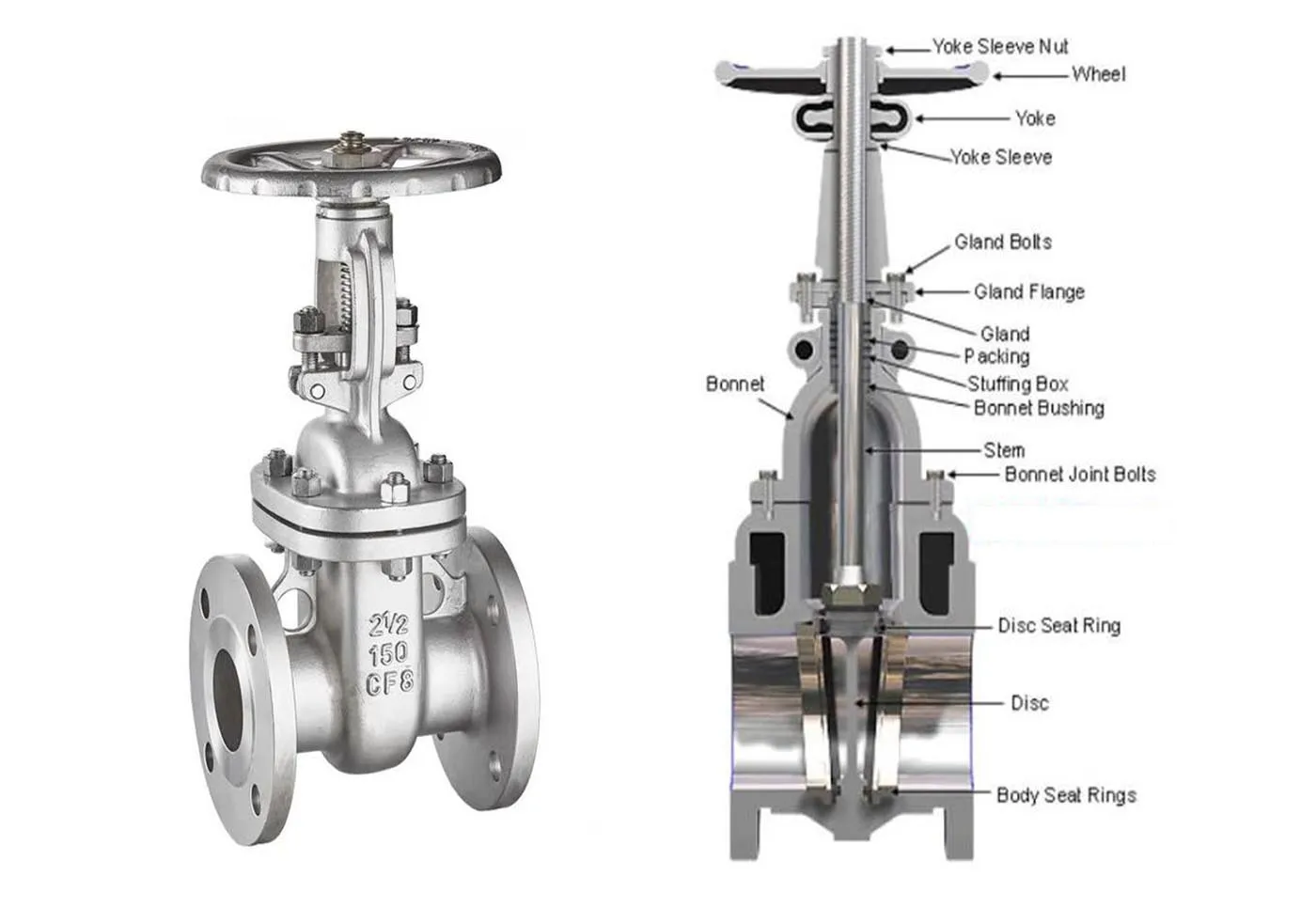

Complete design verification suite for Z540H-type wedge gate valves: 9 independent calculation modules per Valve Design Manual, covering body thickness, seal pressure, stem torque & strength, stem head, wedge connection, wedge thickness, flange bolt, flange thickness and yoke strength.
Shell wall thickness verification per ASME B16.34 and GB standards
Seal face contact pressure verification: qMF ≤ q ≤ [q] per Valve Design Manual
Axial force synthesis, torque and comprehensive stress (σL/σY/τN/σΣ) verification
Shear stress verification at the stem head T-slot connection
Shear stress verification at the wedge T-slot connection
Minimum wedge plate thickness per peripheral-support bending formula
Bolt tensile stress, spacing ratio and ASME B16.34 area verification
Middle flange section bending stress verification
I-I/III-III/IV-IV section stress verification for yoke frame
Q2-2~Q2-3: Verify body wall thickness and seal specific pressure
Q2-4~Q2-7: Stem torque, head, wedge connection and thickness
Q2-8~Q2-9: Middle flange bolt and section strength
Q2-10: Yoke frame section stress verification
Run each module independently with the appropriate design inputs (pressure, material, dimensions) and get a consolidated wedge gate valve design review result across body, seal, stem, wedge, flange, bolt and yoke strength.
