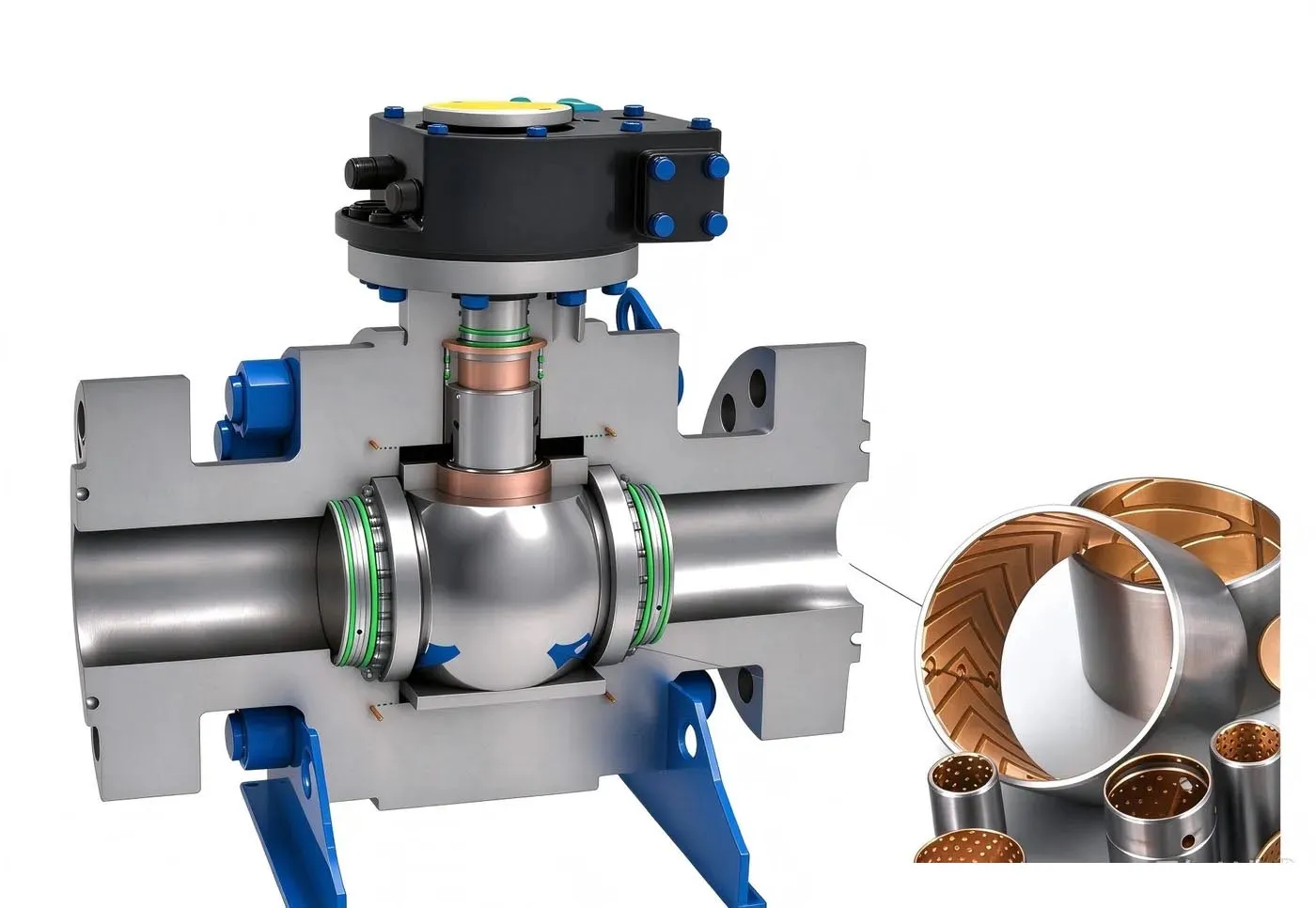

Fixed Trunnion Ball Valve Stem Bearing Pressure

Bearing bushing compressive stress: σY = π/8·DJH²·P / (dF·H) versus allowable 180 MPa for 304SS+PTFE self-lubricating bushing.

Reference: Qw347X 10" DIB-I / ASME B16.34 / API 6D / Valve Design Manual

Why This Calculator

🔧

Compressive stress on SF-1 self-lubricating bushing.

🧮

Bearing load π/8·DJH²·P single-seat model.

📏

Allowable 180 MPa from bearing manufacturer sample.

📉

Safety factor λ < 0.67 per API 6D clause 7.20.

⚙

Only four geometric inputs needed.

✅

Instant PASS/FAIL.

Enter seat loop diameter DJH.

Journal diameter dF and height H.

Set allowable compressive stress.

Check stress and safety factor.

Valve Design EngineersBearing SpecifiersQuality InspectorsMaintenance Engineers

304SS+PTFESF-1 BushingAPI 6D 7.20Auto Pass/Fail

Enter your design parameters and get instant verification results.
